Flex PCBs (flexible printed circuit boards) are designed to settle accommodation challenges of electronics in products with limited space or moving parts. Unlike rigid PCBs, benefits of flex PCBs lie in allowing electrical connections to bend, fold, or follow the shape of a product, helping reduce wiring complexity and improve design flexibility. This article explores common flex PCB applications, key benefits, and design challenges to consider before manufacturing.
What Is a Flex PCB?
A flex PCB uses a flexible insulating substrate, typically polyimide with conductive copper traces. The biggest feature of flex PCBs is it can bend or fold to connect components positioned at different angles or locations.
Flexible circuits are available in single-sided, double-sided, and multilayer constructions. They are commonly used to reduce installation constraints, simplify certain interconnections, and support compact electronic assemblies. However, flexibility alone does not guarantee suitability. The circuit structure must match the product’s electrical, mechanical, and assembly requirements.
What Problems Can Flex PCBs Solve in Electronic Products?
Fitting Circuits into Limited Spaces
Compact devices like smart watch or other wearable devices frequently contain displays, batteries, sensors, and control boards arranged around structural components. A single rigid PCB may occupy too much space, while multiple boards introduce additional connections. So flex PCBs allow circuits to follow the available internal space. This gives engineers more freedom to position components without significantly changing the product enclosure.
Reducing Wiring and Assembly Complexity
Electronic assemblies with multiple modules often require separate cables and connectors. These connections occupy space and can increase installation time, particularly when components are difficult to access. A custom flex PCB can integrate multiple conductive paths into one structure, potentially reducing wiring and assembly operations.
Where Are Flex PCBs Used in Real Products?
Their applications range from compact sensor connections to high-density electrical interfaces and connections between moving components.
Why Are Flex PCBs Used for Electrical Connections in Inkjet Print heads?
Inkjet print heads contain closely spaced electrodes that require precise connections to their driving circuits. Flex PCBs provide customizable conductor layouts that accommodate these connections within limited space.
But dense terminals create manufacturing challenges involving alignment, solder placement, and electrical isolation. This demonstrates why reliable manufacturing involves more than trace width and spacing. Terminal geometry, bonding methods, and assembly tolerances must also be evaluated before finalizing the circuit.
Flexible Connections in Consumer Electronics
Camera modules and portable devices often contain components positioned inside irregularly shaped enclosures. Flex PCBs can connect image sensors, displays, and control electronics while accommodating these structures.
However, a stationary camera connection and a moving camera mechanism have different reliability requirements, which means engineers must distinguish between circuits that fold during assembly and those that experience repeated movement.
Flex PCB Applications in Industrial Equipment
Industrial equipment may use flexible circuits for sensors, control assemblies, and selected moving mechanisms. Custom circuit shapes can simplify connections where rigid boards or conventional wiring are difficult to accommodate.
However, vibration, temperature changes, and repeated mechanical stress can affect performance. These operating conditions must be considered before selecting a flexible circuit.
What Makes Flex PCB Design and Manufacturing Challenging?
A flex PCB must satisfy electrical requirements while maintaining mechanical reliability. A circuit may perform correctly during electrical testing but develop problems after folding, assembly, or repeated movement.
Challenges increase when high-density routing, thin materials, reinforcement, and complex shapes must work together.
Why Can Flex PCBs Fail in Industrial Robot Joints Despite Being Flexible?
Industrial equipment like robot joints undergo repeated rotational movement, placing continuous stress on internal electrical connections. Although flex PCBs can bend, excessive deformation, twisting, or improper installation may eventually damage copper traces.
A patent describing a robotic joint with a flexible printed circuit presents a spiral-shaped design that accommodates rotation while distributing bending across the circuit.
The key issue is how it behaves throughout operation. Bending radius, movement range, copper construction, and expected operating cycles all influence reliability. A circuit designed for one-time folding may not withstand continuous movement. Engineers should therefore evaluate the installed configuration rather than relying solely on a flat PCB drawing.
Balancing Fine-Pitch Routing and Mechanical Flexibility
Compact electronics often require narrow traces, tight spacing, and multiple conductive layers. These features support complex routing but can increase circuit thickness and reduce flexibility.
Engineers may need to adjust the stack-up, relocate connections, or simplify routing within bending regions. Early design-for-manufacturing (DFM) evaluation helps identify these conflicts before fabrication.
Supporting Components Without Restricting Flexibility
Connectors and mounted components generally require mechanical stability, even when the surrounding circuit must remain flexible. Without proper support, bending and handling may place stress on solder joints.

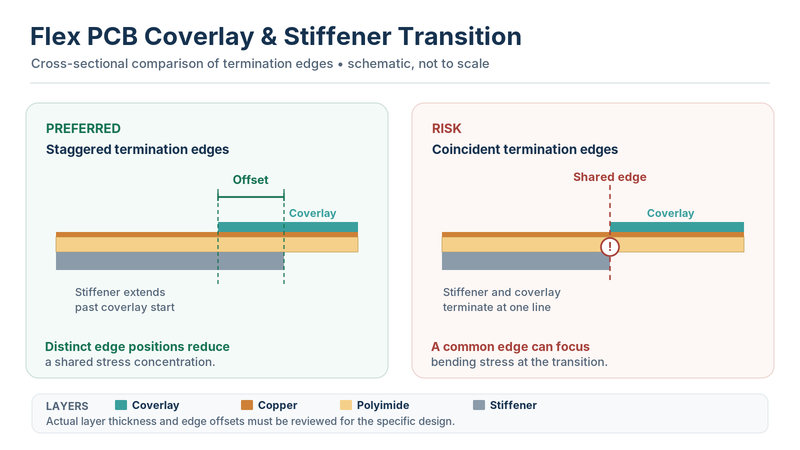

Stiffeners made from materials such as FR-4 or polyimide can reinforce selected areas without making the entire circuit rigid. However, reinforcement positioned too close to a bending region may concentrate stress at the transition. Successful designs provide support where needed while preserving flexibility elsewhere.
What Should You Confirm Before Manufacturing a Flex PCB?
Mechanical Requirements and Bending Conditions
Engineers should first determine whether the circuit will bend during installation or repeatedly during operation. These conditions affect material selection, copper construction, and reliability requirements. Important details include the intended folded shape, bending locations, movement range, and available installation space. For dynamic applications, expected operating cycles should also be defined.
Electrical Design and Assembly Requirements
Layer count, copper thickness, conductor density, and material selection influence manufacturing feasibility. Connector positions and component mounting requirements may determine whether additional reinforcement is necessary.
For assembled flex PCBs, manufacturers must also consider how components will be supported during soldering and installation.
Manufacturing Feasibility and DFM Review
Complete design information helps manufacturers identify potential conflicts before production. Typical flex PCB project requirements include:
- Fabrication files: Gerber files or equivalent design data, board dimensions, layer count, materials, and surface finish.
- Mechanical specifications: Bending areas, folded dimensions, stiffener requirements, and installation conditions.
- Production details: Order quantity, assembly data, testing requirements, and expected delivery schedule.

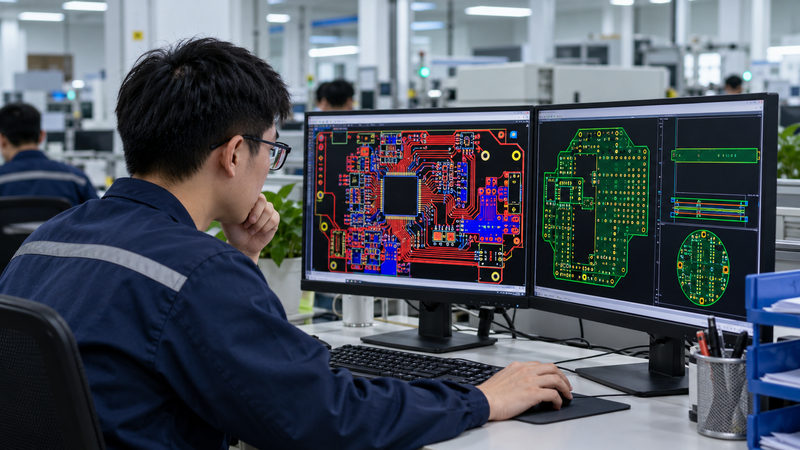

At ABIS, flex PCB projects follow a structured DFM review process(see Help Center), includes reviewing relevant details such as bending areas, copper thickness, coverlay, stiffener construction, and assembly requirements before manufacturing arrangements are finalized. Early communication helps engineering and purchasing teams clarify specifications and reduce unnecessary changes during prototype development.
Frequently Asked Questions About Flex PCBs
Can Flex PCBs Be Used for Continuous Bending?
Yes, reliability depends on material selection, copper construction, bending radius, and expected operating cycles. Dynamic applications require appropriate mechanical evaluation and testing to confirm that the design can withstand its intended operating conditions.

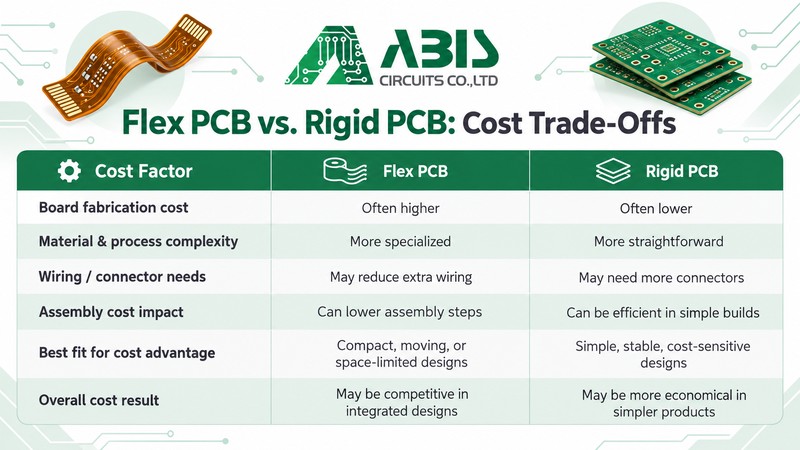

Are Flex PCBs More Expensive Than Rigid PCBs?
Flex PCBs generally cost more to fabricate than comparable standard rigid boards because of their materials and manufacturing processes. However, they may reduce overall assembly costs by replacing separate wiring or connectors. The actual economic advantage depends on the product design and production volume.
What Information Is Required for a Flex PCB Quotation?
Manufacturers typically require fabrication files, dimensions, layer count, material specifications, surface finish, and estimated quantity. For assembled or dynamically bending circuits, component placement information and relevant mechanical drawings help improve quotation accuracy.

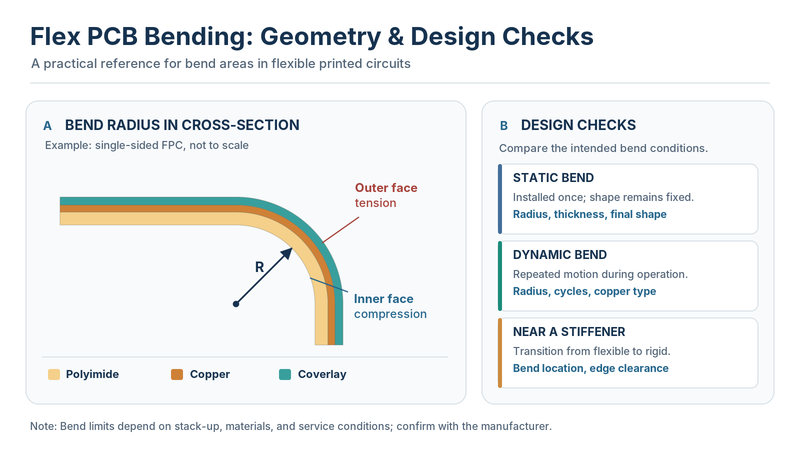

What Is the Minimum Bending Radius for a Flex PCB?
There is no universal minimum bending radius for all flex PCBs. The appropriate radius depends on circuit thickness, copper construction, layer count, and whether bending occurs once during installation or repeatedly during operation. Multilayer circuits and dynamic applications require particular attention. Engineers should confirm bending requirements with their manufacturer before finalizing the design.
Can Electronic Components Be Mounted Directly on a Flex PCB?
Yes, electronic components can be mounted directly onto flex PCBs, provided the assembly offers sufficient mechanical support. Stiffeners made from FR-4 or polyimide are often added beneath connectors and component mounting areas. Components should generally be positioned away from active bending regions to reduce mechanical stress on solder joints and improve assembly reliability.
How Are Flex PCBs Tested for Reliability?
Flex PCB reliability can be evaluated through electrical continuity and insulation testing, visual inspection, and application-specific mechanical testing. For circuits exposed to repeated movement, bend-cycle testing may be necessary to assess fatigue resistance. The appropriate testing methods depend on the circuit structure, operating conditions, and expected service life rather than a single standard test for every application.
Conclusion
Flex PCBs solve important challenges in compact designs, interconnections, and selected moving applications. However, reliable performance depends on balancing electrical requirements, mechanical flexibility, and manufacturing feasibility. Understanding these factors helps engineers select appropriate circuit structures, avoid unnecessary design changes, and improve the transition from prototype to production.
